DIN standard Solid Pin Conveyor Chain (FV Series)

FV series conveyor chains with Solid Pin comply with DIN standards and mainly include FV Series conveyor chains, FVT Series conveyor chains, and FVC Series hollow pin conveyor chains. FV series conveyor chains refer to a variety of chain pitches with metric integers (pitch ranges from 40mm to 500mm). The roller chain or bushing chain roller of the knotted chain has various structural forms, and various accessories are configured according to the working conditions.

Detail Parameters Get A Quote

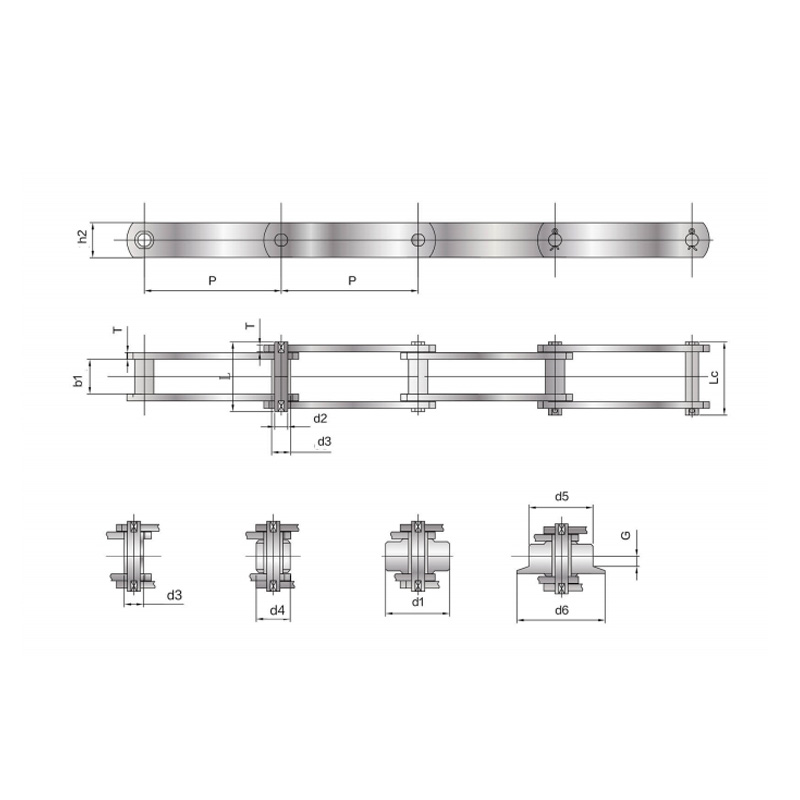

FULONG Chain No. Pitch Roller Diameter Bush Diameter
P d1 max d4 max d5 max d6 max G d3 max
mm mm mm mm mm mm mm mm mm mm mm mm
SSFV40 50 63 80 100 125 32 20 40 50 4 15
SSFV63 50 63 80 100 125 160 40 26 50 63 5 18
SSFV90 63 80 100 125 160 200 48 30 63 78 6.5 20
SSFV112 80 100 125 160 200 250 55 32 72 90 7.5 22
SSFV140 63 100 125 160 200 250 60 36 80 100 9 26
SSFV180 100 125 160 200 250 315 70 42 100 125 13 30
SSFV250 125 160 200 250 315 400 80 50 125 155 15 36
SSFV315 160 200 250 315 400 90 60 140 175 18 42
