Metallurgical Bucket elevator Chain

The chain bucket elevator uses a chain as the main transmission device and is connected to a series of bucket-shaped containers to transport granular or powdery materials in the vertical direction. It operates stably and has a large transport capacity.

Detail Parameters Get A Quote

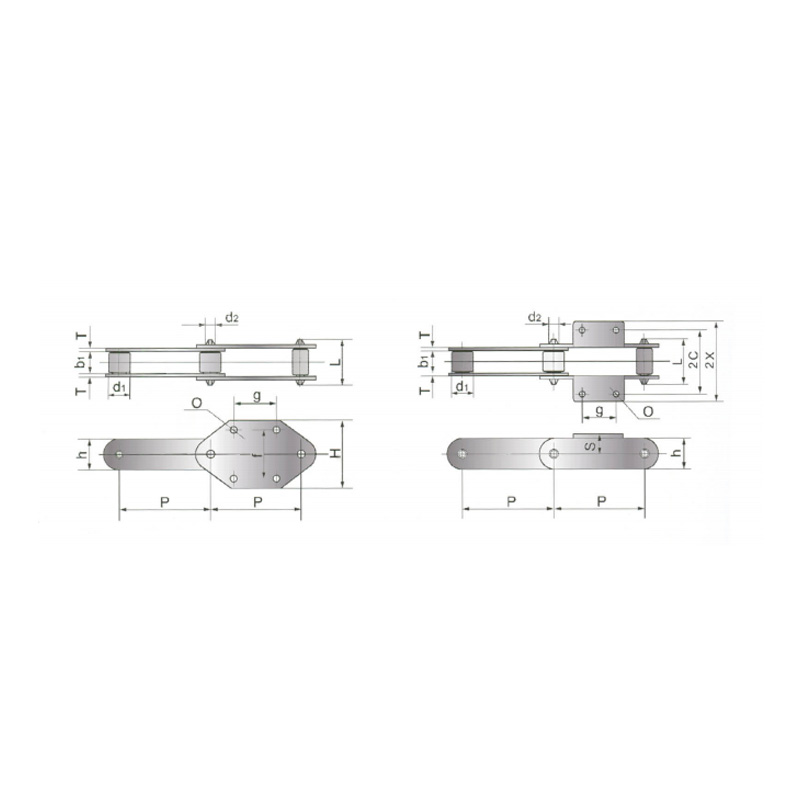

Pitch Width Between Inner Plates Roller Diameter Pin Plate G attachment Ultimate Tensile Strength
P b1 min d1 max d2 max I max h max T H f g o min
mm mm mm m mm mm mm mm mm mm mm KN
152.4 36.5 35 15.5 90 50 8 110 70 75 14 200
200 51.8 42 19.1 120 60 10 125 80 100 14 320
200 58 50 20 126 75 10 125 80 100 14 420
250 67.4 63.5 31.75 146 90 12 150 110 150 17 800
