DIN standard Large roller Conveyor Chain with Heightened Chain plate (FVT Series)

This FVT Series is a conveyor chain with large rollers and heightened chain plate, which complies with DIN standards. There are two types of products with tensile strength indicators for users to choose from. The design of the Large roller and Heightened plate of Conveyor Chain enables it to withstand greater loads and has a larger contact area. Therefore, it can reduce the shaking and deformation of materials and ensure the stability and consistency of materials during transportation.

Detail Parameters Get A Quote

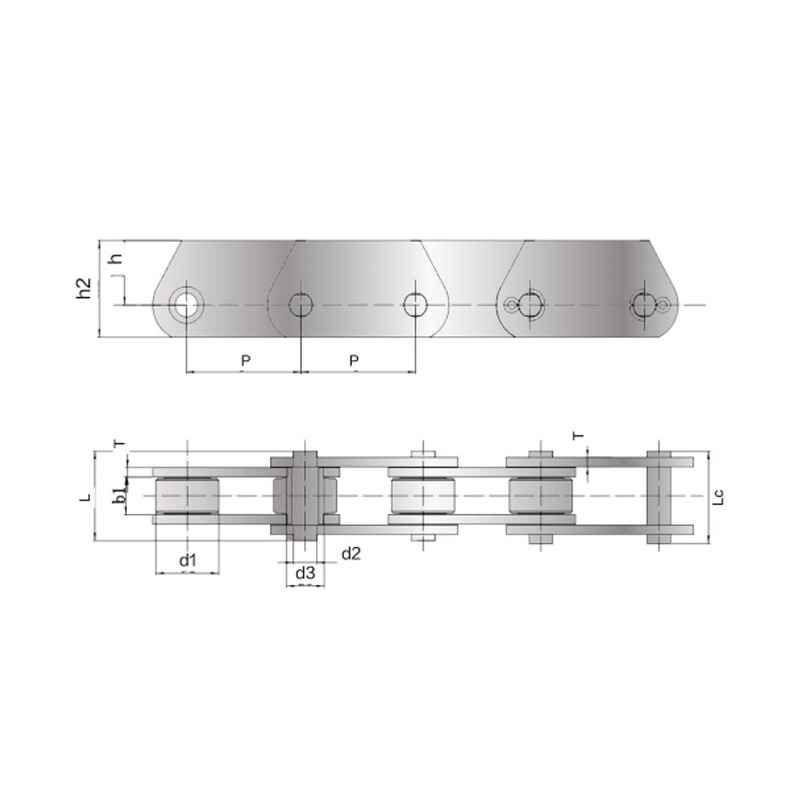

FULONG Chain No. Pitch Roller Diameter Pin Diameter Bush Diameter Plate Thickness Width Between Inner Plates Pin Length Plate Height Ultimate Tensile Strength
p d1 max d2 max d3 max T max b1 min L max Lc max h2 max h max q min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
SSFVT40 50 63 80 100 125 - - 32 10 15 3 18 36 39 35 22.5 28
SSFVT63 63 80 100 125 160 - - 40 12 18 4 22 45 48.5 40 25 44.1
SSFVT90 63 80 100 125 160 200 250 48 14 20 5 25 53 56.5 45 27.5 63
SSFVT112 100 125 160 200 250 - - 55 16 22 6 30 62 66 50 30 72.8
SSFVT140 100 125 160 200 250 - - 60 18 25 6 35 67 71.5 60 37.5 84
SSFVT180 125 160 200 250 315 - - 70 20 30 8 45 86 92 70 45 108
SSFVT250 160 200 250 315 - - - 80 26 36 8 55 97 103.58 80 50 150
SSFVT315 160 200 250 315 400 - - 90 30 42 10 65 113 126.59 90 55 189
