Hollow pin Conveyor Chain (FVC Series) for European market

The Hollow pin Conveyor Chain (FVC Series) is widely used in the European market to transport materials for general transportation and mechanized transmission equipment. The FVC Series Conveyor Chain with Hollow pin has two types of tensile strength index products for users to choose from.

Detail Parameters Get A Quote

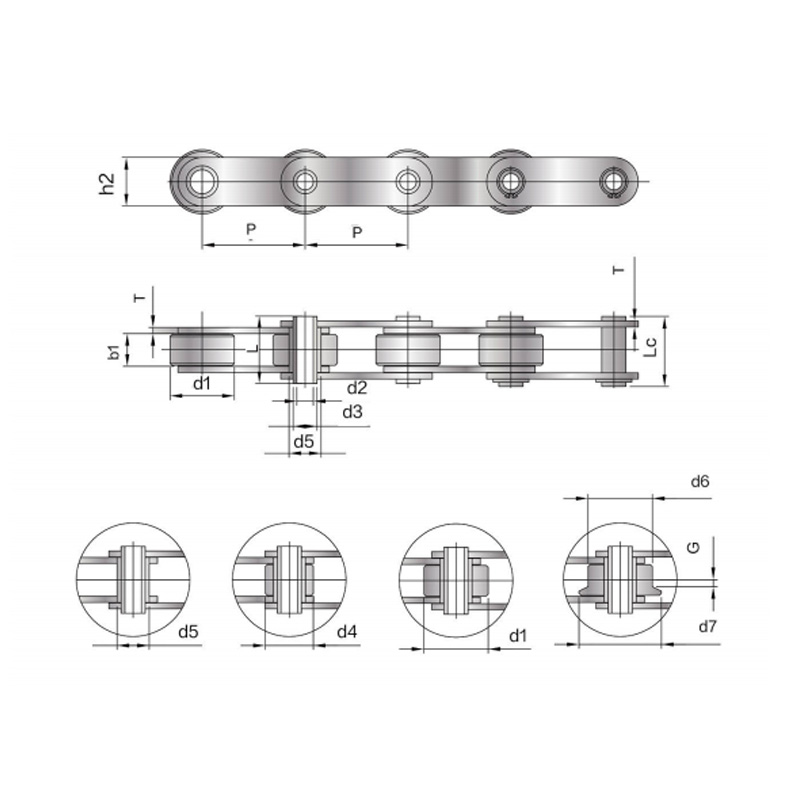

FULONG Chain No. Pitch Roller Dimension Bush Diameter Width Between Inner Plates Pin Diameter Pin Length Plate Height Plate Thicknes Ultimate Tensile Strength
P d1 max d4 max d6 max d7 max G d5 max b1 min d3 max d2 min L max Lc max h2 max T max Q min
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN
SSFVC63 63 80 100 125 160 40 26 50 63 5 18 22 12 8 45 50.5 30 4 32.2
SSFVC90 63 80 100 125 160 48 30 63 78 6.5 20 25 14 10 53 56.5 35 5 51.1
SSFVC112 100 125 160 200 250 55 32 72 90 7.5 22 30 16 11 62 63 40 6 58.5
SSFVC140 100 125 160 200 250 60 36 80 100 9 26 35 18 12 67 68.5 45 6 71.5
SSFVC180 125 160 200 250 315 70 42 100 125 13 30 45 20 14 86 88 50 8 87
SSFVC250 160 200 250 315 400 80 50 125 155 15 36 55 26 18 97 103.5 60 8 123
SSFVC315 160 200 250 315 400 90 60 140 175 18 42 65 30 20 117 121.5 70 10 177
