Hollow pin roller Chain

Hollow pin chain is compared to solid pin chain. According to different usage occasions, various types of accessories are installed in the hollow pin of the chain, such as accessory shafts, cross bars, etc., to realize material lifting and transportation. The main products include short-pitch hollow pin conveyor chains, double-pitch hollow pin conveyor chains, non-standard hollow pin conveyor chains, etc. Using high-quality materials and advanced processing technology, the products have the characteristics of stable transportation and high synchronization.

Detail Parameters Get A Quote

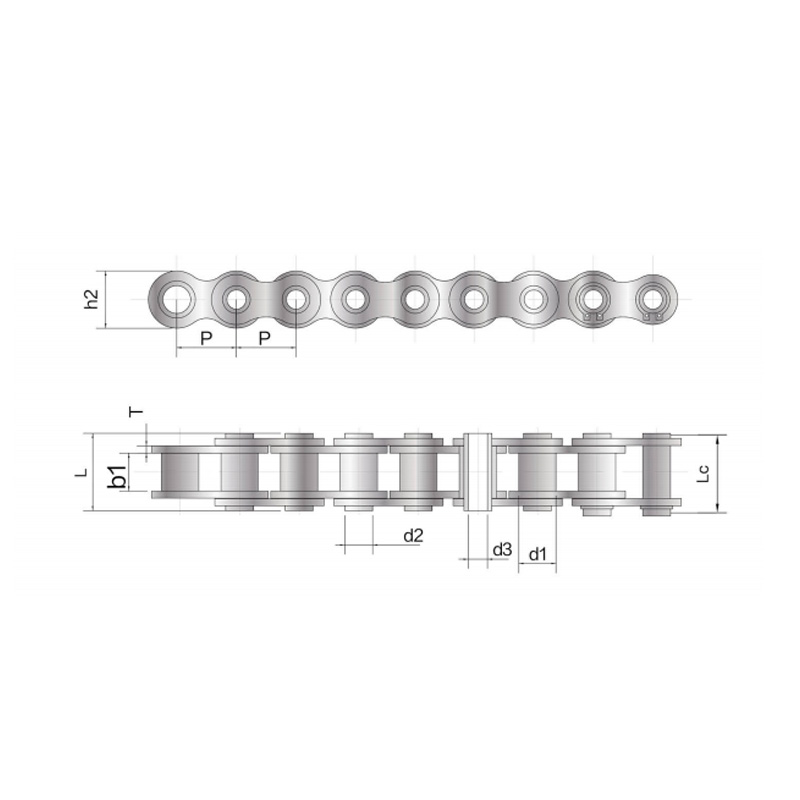

FULONG Chain No. Pitch Roller Diameter Width Between Inner Plates Pin Diameter Pin Length Inner Plate Height Plate Thickness Ultimate Tensile Strength Weight Per Meter
P d1 b1 d2 d3 L Lc h2 T Q q.
max min max max max max max max min
mm mm mm mm mm mm mm mm mm KN
SS40HP 12.7 7.95 7.85 5.94 4 16.6 17.5 12 1.5 7.7 0.54
SS08BHP 12.7 8.51 7.75 6.32 4.5 16.8 17.6 12.15 1.6 7.8 0.52
SS50HP 15.875 10.16 9.4 7.03 5.1 20.75 22.2 15.09 2 14 0.91
SS60HP 19.05 11.91 12.7 8.31 6 26.85 26.8 18 2.42 16.8 1.29
SS80HP 25.4 15.88 15.75 11.1 8.1 32.6 34 24 3.15 35 2.26
SSA2080HP 50.8 15.88 15.75 11.1 8.01 32.6 34 24 3.15 29.6 1.6
SS10BHP 15.875 10.16 9.65 7.01 5.1 19.6 20.5 14.85 1.7 11.9 0.96
SS12BHP 19.05 12.07 11.68 8.02 6 22.6 23.9 16.5 1.85 16.52 1.09
SSHB38.1 38.1 20 8 8 5.3 19.6 20.7 17.3 2 19.6 0.98
SSHP50.8 50.8 26 15.88 20 14.3 41 42.2 38.1 4.8 70 5.32
SSHB50.8 50.8 30 10.5 11.4 8.2 27.4 28.6 26 3.1 35 2.56
