Roller Chain with U type attachment

This roller chain is based on the A&B series short-pitch precision roller chain, with the top surface of the U-shaped attachment as the load-bearing surface. The U-shaped attachment roller chain can be used for conveying equipment to transfer materials. A rubber block can be added to the U-shaped attachment to reduce the risk of product vibration and slipping.

Detail Parameters Get A Quote

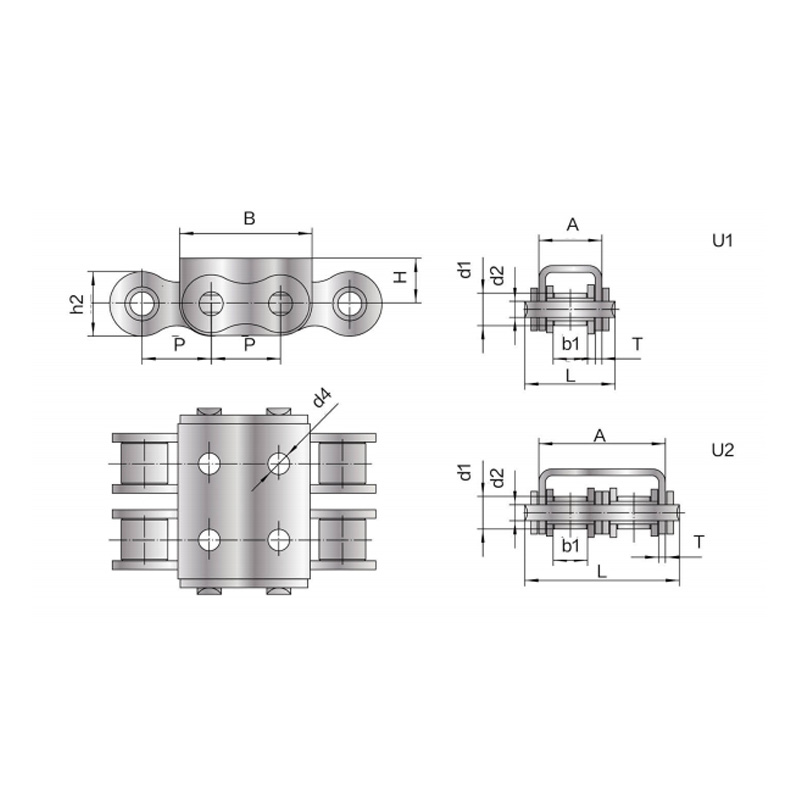

FULONG Chain No. Pitch Width Between Inner Plates Roller Diameter Pin Diameter Pin Length Plate and Attachment Dimensions Ultimate Tensile Strength Weight Per Meter
P b1 d1 d2 L h2 A B H d4 T Q min q
mm mm mm mm mm mm mm mm mm mm mm KN Kg/m
SS08B-U1 12.7 7.75 8.51 4.45 20 11.8 14.6 24.2 8.3 - 1.6 12.6 1.13
SS08B-U2 12.7 7.75 8.51 4.45 34.3 11.8 28.4 24.2 8.3 - 1.5 22.4 1.96
SS08B-U2F9 12.7 7.75 8.51 4.45 47.9 12 28.4 25.5 8.3 4 1.5 20.3 2
SS10B-U1 15.875 9.65 10.16 5.08 23.2 14.7 16.8 30 11.3 5 1.6 13.3 1.53
SS10B-U2 15.875 9.65 10.16 5.08 39.7 14.7 33.3 30 11.3 5 1.5 31.15 2.47
SS12B-U1 19.05 11.68 12.07 5.72 25.7 16 19.6 36 13 5 1.85 20.3 1.9
SS12B-U2 19.05 11.68 12.07 5.72 45.3 16 39.1 36 12 5 1.85 40.46 3.03
SS16A-U1 25.4 15.75 15.88 7.92 37.2 24 27.5 46 16 - 2.42 39.69 3.88
SS16B-U1 25.4 17.02 15.88 8.28 39.7 21 29.05 49 15.4 6 1.6 40.6 3.73
SS16B-U2 25.4 17.02 15.88 8.28 71.7 21 60.93 49 16.2 - 1.6 74.2 6.15
SS20B-F2 31.75 19.56 19.05 10.19 48 26.4 36 57 21 8 3.5 55.25 6.01
SS20B-U1 31.75 19.56 19.05 10.19 48 26.4 36 57 21 - 3.5 55.25 6
SS24B-U1 38.1 25.4 25.4 14.63 61.6 33.2 47 72.6 28 10 4.5 104 10.88
