BS standard Conveyor Chain with hollow pin ( ZC Series )

Z series conveyor chains comply with BS standards and mainly include Z series conveyor chains, ZE series conveyor chains, and ZC series hollow pin conveyor chains. ZC type is a hollow pin conveyor chain, the rollers have a variety of structural forms, and various accessories are configured according to the operating conditions. There are two types of products with tensile strength indicators available User choice. Z series conveyor chains refer to chains with a pitch value of inch size (1.50inch ~ 12.0inch) roller chain or sleeve chain.

Detail Parameters Get A Quote

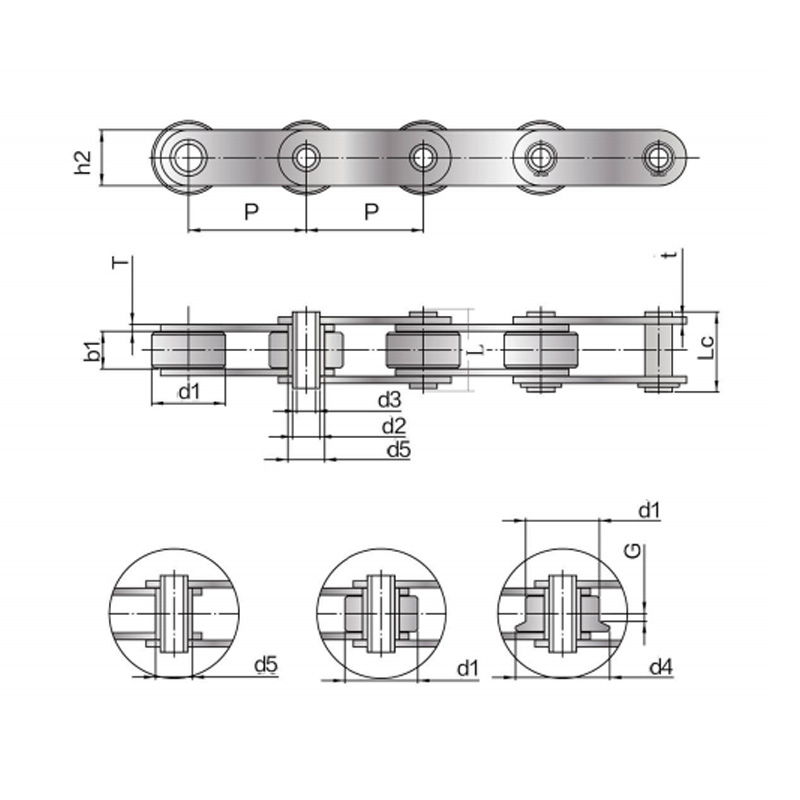

FULONG Chain No. Pitch Roller Diameter Bush Diameter Width Between Inner Plates Pin Diameter Plate Height Pin Length Plate Thickness Ultimate Tensile Strength
P d1 d4 G d5 b1 d2 d3 h2 L Lc T/t Q
max max max max min max max max max max max min
mm mm mm mm mm mm mm mm mm mm mm mm KN
SSZC21 38.1 50.8 63.5 76.2 - - - 25.4 - - 11 12.7 9 6.5 26 27.5 18 2.5 14.7
SSZC40 50.8 63.5 76.2 88.9 101.6 127 152.4 31.75 40 2.5 17 15 14 10.2 36.4 37.7 25 4 28
SSZC60 76.2 88.9 101.6 127 152.4 177.8 203.2 47.5 60 3.5 23 19 19 13.2 45 46.5 40 5.0/4.0 42
SSZC150 101.6 127 152.4 177.8 203.2 228.6 254 66.7 82 4 33 26 26.9 20.2 58 60.5 50 7.0/5.5 105
SSZC300 152.4 177.8 203.2 254 304.8 - - 88.9 114 8.5 38 38 32 22.5 83 85 60 10.0/8.0 210
