BS standard Large roller Conveyor Chain ( ZE series )

ZE series is a conveyor chain with large rollers and heightened chain plates. There are two types of products with tensile strength indicators for users to choose from. The structure of large rollers and heightened chain plates increases the strength and stability of the chain, making it possible to carrying heavy materials or products, transporting materials for general conveying and mechanized conveying equipment, complying with BS standards.

Detail Parameters Get A Quote

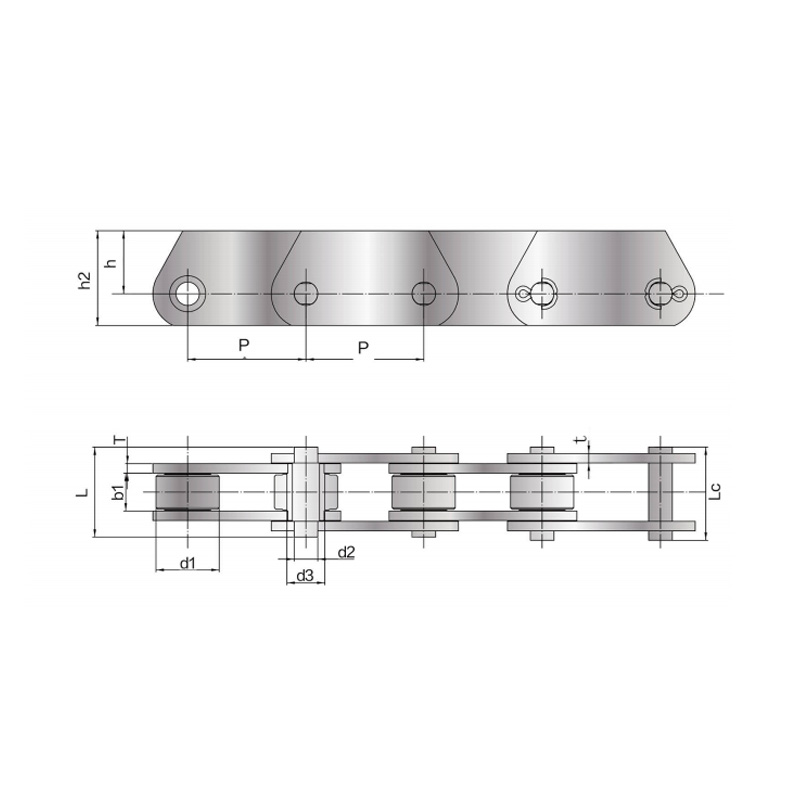

FULONG Chain No. Pitch Roller Diameter Pin Diameter Bush Diameter Width Between Inner Plates Pin Length Plate Height Plate Thickness Ultimate Tensile Strength
P d1 d2 d3 b1 L Lc h2 h T Q
max max max max max max max max max min
mm mm mm mm mm mm mm mm mm mm KN
SSZE40 50.8 63.5 76.2 88.9 101.6 127 152.4 31.75 14 17 15 37 40.5 40 27 4 28
SSZE100 76.2 88.9 101.6 127 152.4 177.8 203.2 47.5 19 23 19 45 50.5 50 30 5.0/4.0 65
SSZE160 101.6 127 152.4 177.8 203.2 228.6 254 66.7 26.9 33 26 58 63.5 70 45 7.0/5.0 104
SSZE300 152.4 177.8 203.2 254 304.8 - - 88.9 32 38 38 84 94 90 60 10.0/8.0 180
