BS standard Solid Pin Conveyor Chain ( Z series )

Z series conveyor chains with Solid Pin, comply with BS standards. Z series BS standard Conveyor Chain are similar to M series conveyor chains, pitch inch size 1.50inch~12.0inch and widely used in the European market to transport materials for general conveying and mechanized conveying equipment.

Detail Parameters Get A Quote

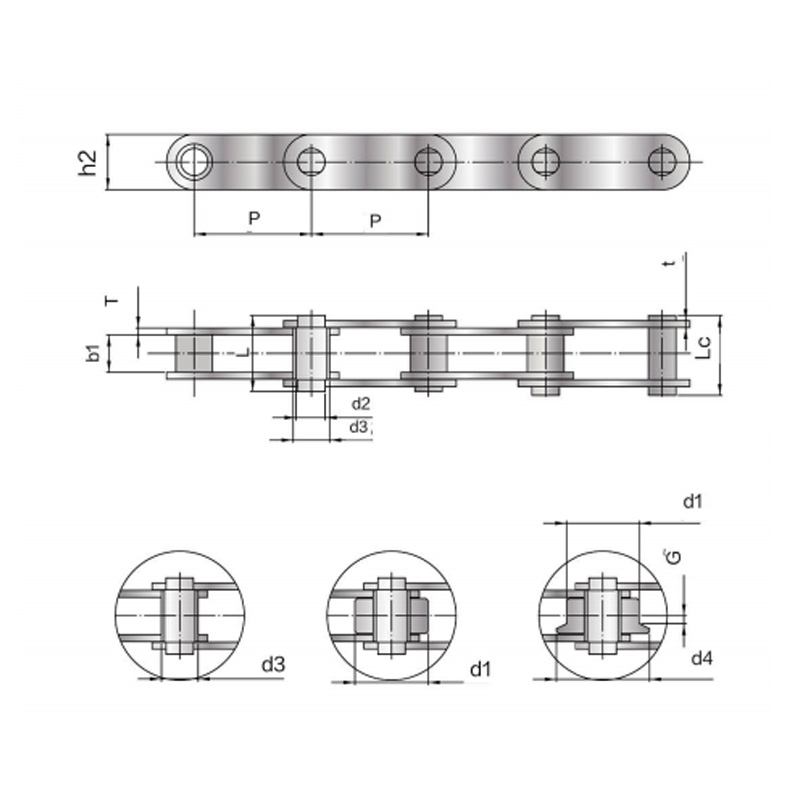

FULONG Chain No. Pitch Roller Diameter Bush Diameter Width Between Inner Plates Pin Diameter Plate Height Pin Length Plate Thickness Ultimate Tensile Strength
P d1 d4 G d3 b1 d2 h2 L Lc T/t Q
max max max max min max max max max max min
mm mm mm mm mm mm mm mm mm mm mm KN
SSZ40 50.8 63.5 76.2 88.9 101.6 127 152.4 31.75 40 2.5 17 15 14 25 37 40.5 4 28
SSZ100 76.2 88.9 101.6 127 152.4 177.8 203.2 47.5 60 3.5 23 19 19 40 45 50.5 5.0/4.0 65
SSZ160 101.6 127 152.4 177.8 203.2 228.6 254 66.7 82 3.5 33 26 26.9 50 58 63.5 7.0/5.0 104
SSZ300 152.4 177.8 203.2 254 304.8 - - 88.9 114 8.5 38 38 32 60 84 91 10.0/8.0 180
